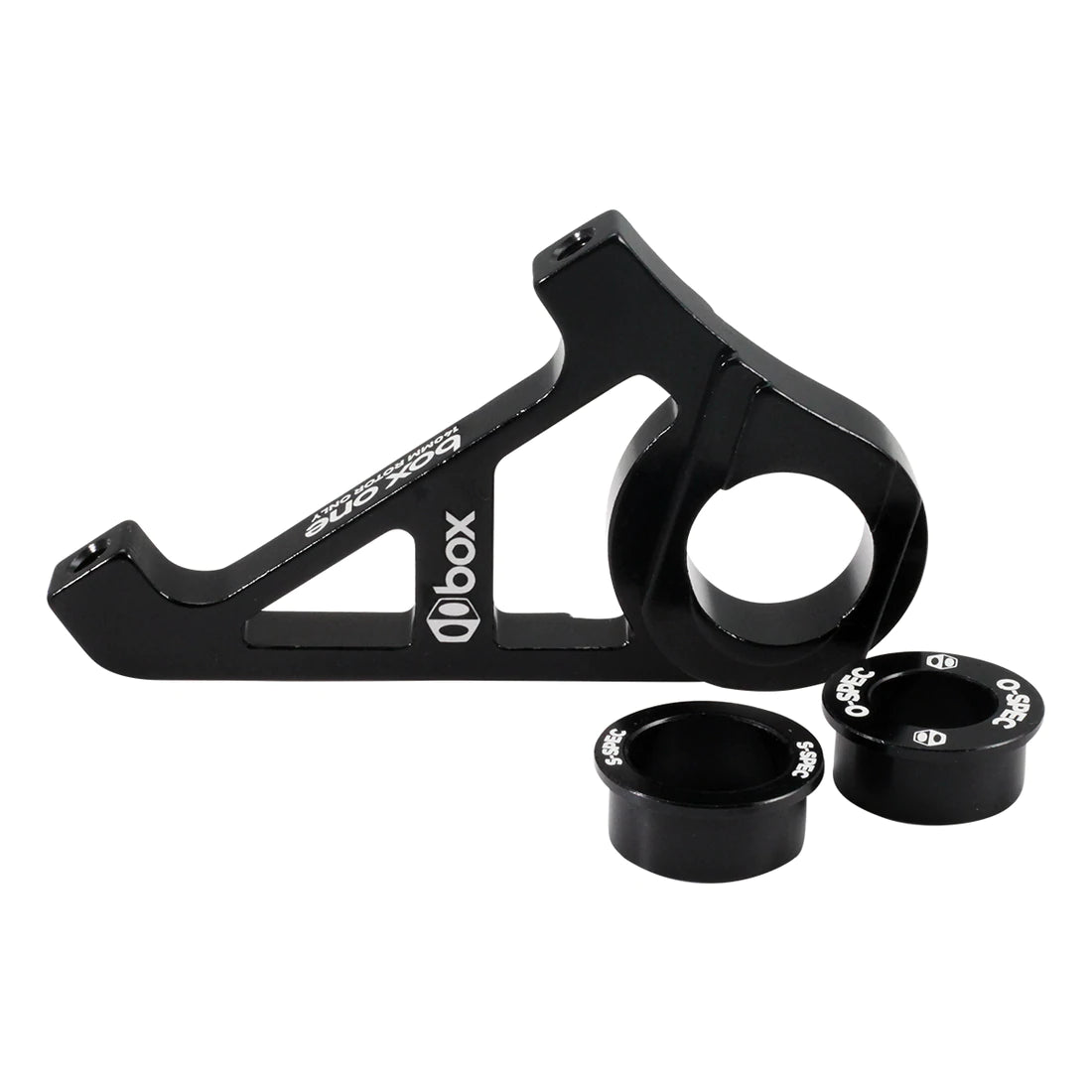

Box One BMX Disc Brake Adaptor
Box One BMX Disc Brake Adaptor
Couldn't load pickup availability
- Designed to help improve braking control on frames where disc brakes were not standard
- The Box Disc Brake Adapter goes over your hub’s axle and mates with the frame’s dropout, allowing mounting of a standard post mount disc brake caliper
- Available for standard or sliding dropouts with inserts
- Recommended maximum rider weight 150lbs
- Compatible with the Box Three Pro disc, Stealth 10mm, and Onyx 10mm disc hubs
- Standard 10mm Dropouts - Standard dropout configuration, dropout must be between 6-8mm thick, and have a flat inside face
- Sliding Plate Dropout - Found on many Thrill, Haro, DK and Stay Strong aluminum frames
- *Please note this product is NOT universally compatible, see boxcomponents.com or your local salesmen for details
| Type: | Sliding Dropout | Size: | 10mm |
| Brake Mount: | Standard Post Mount | Material: | 6061AL |
| Color: |
Black
|
(SLIDING DROPOUT)
The Box One Disc Brake Adapter is designed to improve braking control on frames where disc brakes were not standard. Compatible with 2 types of dropouts and 3-10mm hubs, the Box Disc Brake Adapter goes over your hub’s axle and mates with the frame’s dropout in the right configurations allowing mounting of a standard post mount disc brake caliper.
Please note this product is NOT universally compatible. We strongly recommend reading the Compatibility and Installation instructions for details before purchasing.
This version is compatible with specific sliding plate dropouts with inserts. Please see the compatibility section for more details.
3-10mm hub
6061-T6 aluminum
140mm Brake Rotor Only
Post Mount Caliper Compatibility
150lb Rider Weight Limit
